Note: This homework is due at the same time as a checkpoint (partial progress) submission for the next homework, smooth

Task

  1. Download rotate.tar on a Linux system. [Last updated: 2019-04-04]

  2. Run tar xvf rotate.tar to extract the tarball, creating the directory rotate.

  3. Edit rotate.c to make the who_t structure to include the your name and computing ID. You also need to supply a scoreboard name. We will publicly post the last performance results on a scoreboard, which will use whatever scoreboard name you supply. (There will also be a more detailed result viewer only visible to you.)

    Note that unlike previous versions of this assignment, it is to completed individually; you may not work with a partner.

  4. In rotate.c, create new implementations of rotate that perform the same calculation as naive_rotate, but will be faster. Modify register_rotate_functions to include each of these functions.

    You may not attempt to interfere with the code that will time your new implementations of rotate. (See other rules below.)

    Your functions only need to work for multiple-of-32 dimension values.

  5. Test your implementation to make sure it is correct and to see what average speedup it gets. To get full credit, your speedup should be at least 2.9 on our testing machine. (See grading below for more details.)

    1. You can run make to build ./benchmark to test your rotate implementation on your own machine or on a department machine. On the department machines, you can get access to the same compiler we will use to test your submission by running module load gcc-7.1.0.

      Usually, if version A of rotate is significantly faster on your machine, it will also be faster on ours, but the amount faster may vary significantly. The most notable exception is if your machine has a different compiler (e.g. gcc is actually some version of Clang and not some version of GCC, like on a typical OS X machine); one way to mitigate this effect by testing on the department servers.

      You should always do this before submitting something for our server to run to make sure your new version of rotate performs the correct calculation.

    2. If you submit rotate.c to kytos, we will time it on our machine and post the results here. It may take 30-60 miuntes for us to run your submission, and perhaps more if we receive a lot of submissions in a short amount of time.

Collobaration Policy

The following kinds of conversations are permitted with people other than the course staff:

Other rules

Violations of the following rules will be seen as cheating, subject to penalties that extend beyond the scope of this assignment:

Additionally, the following rules may result in grade penalties within this assignment if violated:

Rotate Task Overview

This assignment deals with optimizing memory-intensive code. You will be optimizing an image processing operation we will call “rotate”, which rotates an image counter-clockwise by 90◦.

We will consider an image to be represented as a two-dimensional matrix M, where Mi,j denotes the value of (i, j)th pixel of M. Pixel values are triples of red, green, and blue (RGB) values. We will only consider square images. Let N denote the number of rows (or columns) of an image. Rows and columns are numbered, in C-style, from 0 to N − 1.

Given this representation, the rotate operation can be implemented quite simply as the combination of the following two matrix operations:

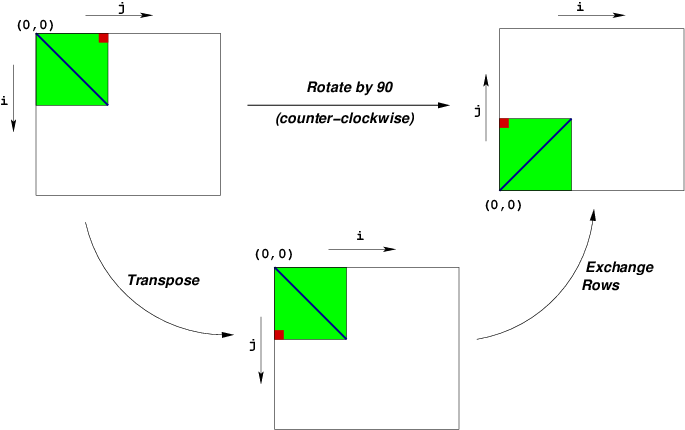

This combination is illustrated in the following figure:

Fig 1: Image rotation

Note that:

Code

Structures we give you

A pixel is defined in defs.h as

      typedef struct {
    unsigned char red;
    unsigned char green;
    unsigned char blue;
        unsigned char alpha;
} pixel;



(The “alpha” component represents transparency.)

In memory, this takes up 4 bytes, one byte for red, followed by one byte for green, and so on.

Images are provided in flattened arrays and can be accessed by RIDX, defined as

      #define RIDX(i,j,n) ((i)*(n)+(j))



by the code nameOfImage[RIDX(index1, index2, dimensionOfImage)].

All images will be square and have a size that is a multiple of 32.

What you should change

In rotate.c you will see several rotate functions.

The source code you will write will be linked with object code that we supply into a benchmark binary. To create this binary, you will need to execute the command

          $ make



You will need to re-make the benchmark program each time you change code in rotate.c. To test your implementations, you can run the command:

          $ ./benchmark



If you want to only run a particular function, you can run

          $ ./benchmark 'foo'



to only run benchmark functions whose name contains “foo”.

Note that the benchmark results on your machine and the shared lab servers are often different than our grading machine. Generally, we’ve found that optimizations that make code significantly faster on other machines usually make code significantly faster on our grading machine. However, the amount of speedup may be quite different.

Measuring on our grading machine

You can measure the performance on our grading machine by submitting a version of rotate.c to kytos.

We will periodically scan for new submissions and run them on our grading server.

You can view detailed results here, which include the times for each version you submitted.

In addition, your last result will appear on a public scoreboard.

Correctness Testing

If one of your implementation produces a wrong answer, you can test it with the ./test program, which will show you its complete input and output.

To run this, first build it by running

          $ make



then choose a size to test (e.g. 4), and to test your rotate function named rotate_bar use:

          $ ./test "rotate_bar" 4



The ./test program will run all test functions whose description contains the supplied string. For example, the above command would run a function whose description was rotate_bar: version A as well was one whose description was bad_rotate_bar_and_baz: version B.

Note that ./test can run your program on sizes that are not required to work. In particular, we do not require your functions to work on non-multiple-of-32 sizes, but you may find sizes smaller than 32 convenient for debugging.

Grading

The benchmark program tests your program at several sizes, computes the speedup over the naive code at each size, then takes the geometric mean of these results to get an overall speedup number. This is what we will use to grade. * Speedups vary wildly by the host hardware. I have scaled the grade based on my timing server’s hardware so that particular strategies will get 75% and 100% scores.

Rotate will get 0 points for 1.0× speedups on my computer, 75% for 1.50×, and 100% for 2.9× speedups, as expressed in the following pseudocode:

      if (speedup < 1.00) return MAX_SCORE * 0;
if (speedup < 1.50) return MAX_SCORE * 0.75 * (speedup - 1.0) / (1.50 - 1.0);
if (speedup < 2.90) return MAX_SCORE * (0.75 + 0.25 * (speedup - 1.50) / (2.90 - 1.50));
return MAX_SCORE;



If you submit many times, your grade will be based on the version submitted that results in the best score, taking late penalties into account.

About our Testing Server

We will be testing the performance of this program on our machine. We will be build your programs with GCC 7.1.0, which is available on portal.cs.virginia.edu or via NX remote desktop after running module load gcc-7.1.0. For this compiler gcc --version outputs gcc (GCC) 7.1.0. We will compile your submitted files using the options -g -Wall -O2 -std=gnu99 -mavx2 -mtune=skylake -fno-strict-aliasing -fno-tree-vectorize.

Our testing server has an Intel “Kaby Lake” processor with the following caches:

The size of a cache block in each of these caches is 64 byte.

Things about our processor that some students might want to know but probably aren’t that important:

Hints

On bottlenecks in rotate

Note that the rotate operation involves little computation and a lot of memory accesses to both src and dest, so its performance likely heavily depends on how efficient those memory accesses are.

Kinds of optimizations we discussed

The following is a non-comprehensive list of optimization techniques, which may or may not be applicable to this assignment:

Miscellaneous optimization hints
